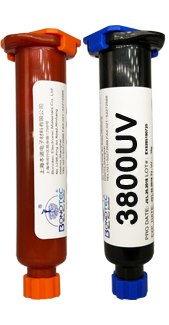

exbond 3800uv

it has been formulated for application in lcd as protective layer and other sealing material. it can cure fast under uv with excellent elasticity and flexibility.

86-021-52272688

product introduction

product description

it has been formulated for application in lcd as protective layer and other sealing material. it can cure fast under uv with excellent elasticity and flexibility.

features

well wetting on glass and other polar surface, decreasing dripping defect.
easy blue for visual inspection.
acrylic resin, good adhesion on glass.

technical parameters

  • typical uncured properties
  • appearance
  • viscosity @25°c
  • storage life
  • ionics
  • exbond 3800uv
  • transparent blue
  • 400 cp
  • 1year
    6 months
  • chloride<20ppm sodium<10ppm
    potassium<10ppm
  • test description
  •
  • brookfield cp51@5rpm
  • under 5℃
    under 25℃
  • teflon flask 5g sample / 20-40mesh 50g di water 100°c for 24 hours
  • cure process data
  • halogen light source
  • led light source
  • exbond 3800uv
  • 500 mj/cm2
  • 3000 mj/cm2
  • test description
  •
  •
  • physiochemical properties-post cure
  • glass transition temperature (tg)
  • coefficient of thermal expansion
  • volume resistivity
  • die shear strength @ 25ºc
  • exbond 3800uv
  • -28°c
  • below tg  71 ppm/℃
    above tg  180 ppm/℃
  • >1.1×1016ω·cm
  • 21n/mm2
  • test description
  • tma penetration mode
  • tma expansion mode
  •
  •

the data above indicate typical values only and are not intended to be used as specification limits.

bonotec products are packaged in syringes or jars per customer specification. available package sizes range from 1cc to 30cc and 1 ounce to 1 pound. for details, refer to the bonotec standard package data set or consult your customer service representative.
